Cleanroom Measurement Devices

  • Particle Counters

    8306 Handheld Particle Counter 0.3 µm @ 0.1 CFM

    The Particles Plus 8306 Handheld Particle Counter measures 0.3 µm to 25 µm with a flow rate of 0.1 CFM (2.83 LPM) and can display up to 6 user-selectable particle size channels, as well as temperature and humidity data.

  • Particle Counters

    8506 Handheld Particle Counter 0.5 µm @ 0.1 CFM

    The Particles Plus 8506 Handheld Particle Counter measures 0.5 µm to 25 µm with a flow rate of 0.1 CFM (2.83 LPM) and can display up to 6 user-selectable particle size channels, as well as temperature and humidity data.

  • Particle Counters

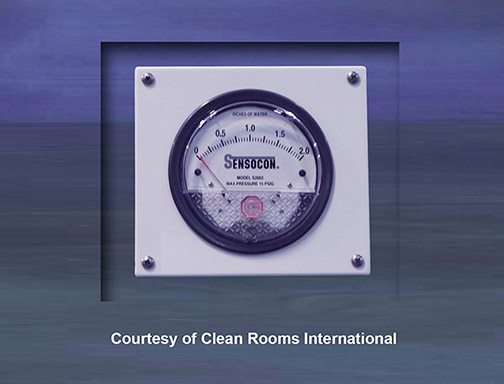

    Magnehelic Gauge: measure blower pressure, filter resistance and room pressure drop.

  • Particle Counters

    This shows a Magnehelic Gauge installed on the outside of an SIS 797 Enclosure.

  • Particle Counters

    Magnehelic Gauge in a flow bench.

  • Particle Counters

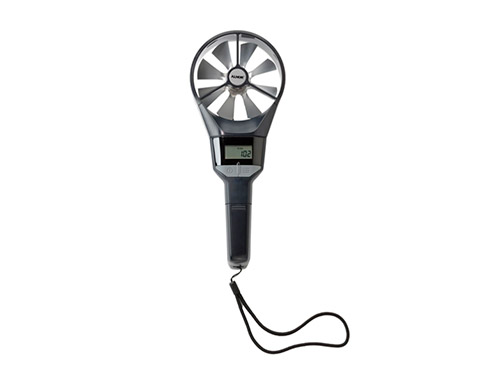

    ALNOR ROTATING VANE ANEMOMETER RVA801

    The TSI Alnor® Rotating Vane RVA801 anemometer is easy-to-use and provides accurate and reliable readings. The RVA801 uses a simple button operation to measure air velocity, air volume and temperature. Readings are displayed in metric or imperial mode from 50-6000 ft/min (0.25-30 m/s). This instrument includes a rotating swivel head that allows the display to conveniently face the operator. Ideal applications include HVAC commissioning, heating and cooling coil analysis, diffuser and grille measurement, fume hood face velocity tests, indoor air quality tests and filter face velocity measurements.

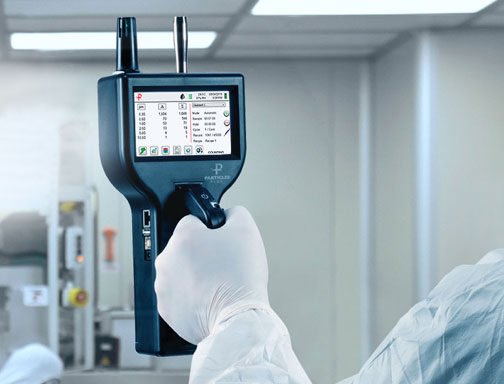

Particles Plus 8306 Handheld Particle Counter

The Particles Plus 8306 Handheld Particle Counter measures 0.3 μm to 25.0 μm with a flow rate of 0.1

Particles Plus 8506 Handheld Particle Counter

The Particles Plus 8506 Handheld Particle Counter measures 0.5 μm to 25.0 μm with a flow rate of 0.1 CFM (2.83 LPM).

All Particles Plus counters meet ISO 21501-4 and JIS B9921. The 8306 ensures compliance with an on-board pulse height analyzer.

Magnehelic Gauge

Magnehelic Gauge is used to measure fan pressure, blower pressure, air velocity, furnace draft, pressure drop across orifice plates, liquid levels in bubbler systems, pressures in fluidic systems and filter resistance.
