IQ Nozzle

Static Neutralizing Nozzle

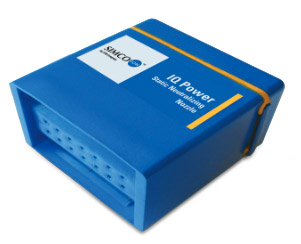

The IQ Power Nozzle is a shockless pulse DC ionizer engineered to operate at 7 kV. The IQ Power Nozzle is compatible with Simco Ion’s IQ Power Static Neutralizing system. When used with the IQ BPS Power Supply, users of the IQ Power Nozzle have worry free, one-touch setup and continuous active monitoring. The IQ Power Nozzle’s compact size allows for neutralizing surfaces in a variety of applications.

Three configurations are available:

High Efficiency: Offers exceptional performance with significantly lower air consumption compared to other nozzles. Recommended for use in applications less than 18 inches from the target, where a high volume of air is not required.

Slotted: Recommended for applications where a more focused ionized air stream is needed.

Perforated: Recommended for applications where a wider coverage area of ionization is needed.

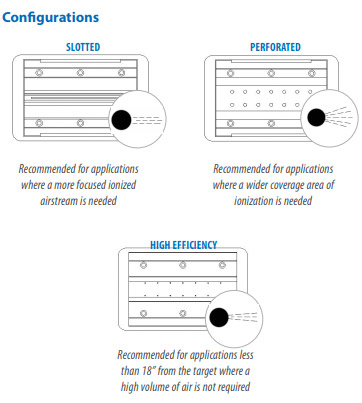

IQ Nozzle configurations

Specifications

IQ Nozzle
Input Voltage	7 kVDC (IQ Power BPS speed mode) using specified HV cable
Air Input	80 psi, max
Air Input Connections	Supplied 1/8 NPT straight or right angle for use with 1/4" O.D.tubing
Air Consumption	Slotted & Perforated: 10 scfm @ 30 psi High Efficiency: 1.25 cfm @ 30 psi
Dimensions	2.1"L x 2.1"W x 1.3"H
Temperature	60°C (140°F) max
IP Rating	IP-66
