Chargemaster

Chargemaster

Chargemaster

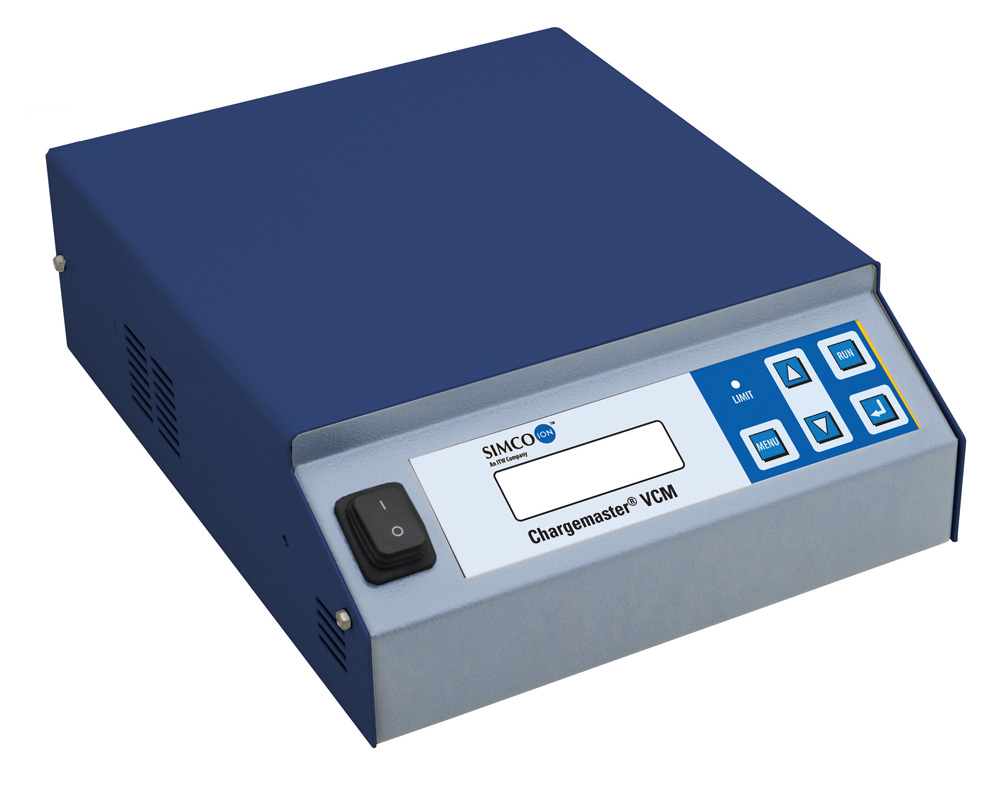

The Chargemaster VCM is programmable for either voltage or current control mode to supply the high voltage for charging bars and various charging applicators used to electrostatically bond materials. The Chargemaster VCM provides a robust solution for a wide range of production processes maximizing the efficiency of the application.

Features

  • Run up to 4 charging bars or applicators
  • Capable of voltage or current control mode operation
  • Simplified programmable menu with status indicator
  • Remote operation capability
  • Short circuit protected output
  • Powerful industry leading 5mA pinning current

Specifications

Chargemaster

Input Voltage 85-264 VAC@ 47-63Hz
Output Voltage VCM30: 0-30kV @ 5mA
VCM60: 0-60kV @ 2.5mA
Output Ports 4
Enclosure Steel
Dimensions VCM30: 10.5"W x 4.25"H x 13.5"D (16.5 lbs)
VCM60: 10.5"W x 4.25"H x 15"D (16.5 lbs)
Approval CE
