Charging Applicators

Pinner T
Pinner-LP
Pinner Charging Applicators

Charging Applicators

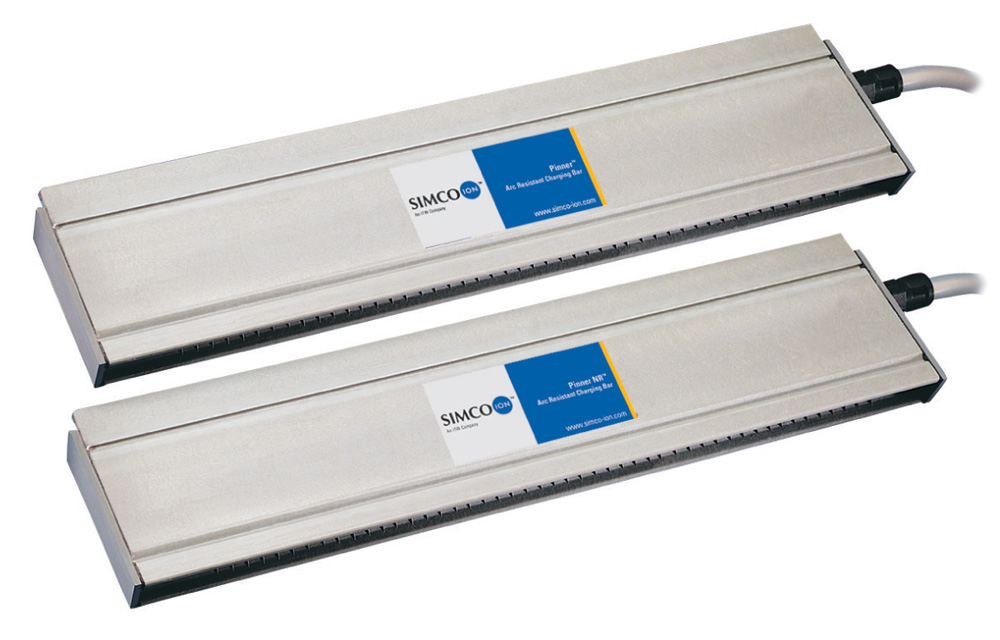

Pinner-T

Pinner and Pinner-T bars are available as part of the Chargemaster Electrostatic Generating System. These bars are energized with our Charging generators to deliver a safe charge to temporarily pin or bond materials together. Quality construction and engineered for performance, the Pinner Series will help you achieve your Electrostatic Pinning goals whether working with IML, lamination, card tacking or edge pinning.

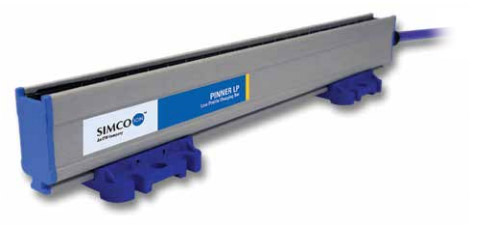

Pinner-LP

The Pinner-LP bar is part of the Chargemaster Electrostatic Generating System. With its low profile design, the Pinner-LP is the smallest in the series making it easier to fit in tight spaces. A large variety of lengths are available allowing for the perfect fit. The Pinner-LP is engineered to provide stunning pinning performance for multiple applications, especially in roll-to-roll changeover.

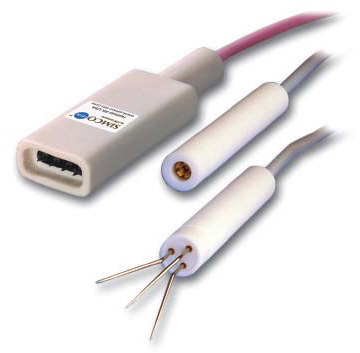

Pinner Charging Applicators

Arcing can cause a multitude of problems such as EMI interference, shutdown of production lines and personnel injury due to surprise from electrical shock. Resistance to arcing means that the Pinner applicators continuously supply static charge. This feature makes them easier and safer to set up and use. The Pinner also produces superior bonding compared to less sophisticated applicators. The Pinner applicators are also available in a non-current limited version for less sensitive areas.

Features

Pinner-T

Super-rugged design for Industrial Environments
Resistively coupled for operator safety and reduced EMI emissions
High output for outstanding pinning performance
Part of the Innovative Chargemaster System, for demanding Industrial applications

Pinner-LP

Low profile design
Fully encapsulated quality construction
Current-limited for operator safety and reduced EMI/RFI
Long life emitter pins
Designed for rugged industrial use

Pinner Charging Applicators

Current limited design for operator and equipment protection
Arc condition sensing and instantaneous intervention resulting in uninterrupted pinning action
Minimized EMI and RFI generation, preventing disruption of sensitive control
Optional manual adjust gooseneck with easy lock/release feature and insulative brackets
Replaceable pins to ensure maximum pinning performance
Rated for use in temperatures to 500°F
Designed and tested as an integral component of Simco-Ion electrostatic charging systems

Specifications

Pinner-T
Input Voltage	±30 kVDC (±50 kVDC with special mounting and insulation precautions)
Output Current	1.5 mA/ft max
Operating Environment	Temperature 32-200°F (0-90°C); humidity 70% RH Max, no dewing permissible
Operating Distance	1/2" to 3" (application & voltage dependant)
Weight	2.1 lb/foot
Housing Material	Glass filled polyester
High Voltage Cable	Flexible, abrasion-resistant, silicone outer jacket rated to ±50 kV

Pinner-LP
Input Voltage	±30 kVDC max
Output Current	Continuous Use: 0.75 mA/ft max Intermittent Use: 1.50 mA/ft max
Operating Environment	32°F (0ºC) to 200ºF (90°C); 70% RH Max, no dewing permissible
Operating Distance	1/2" to 3" (application & voltage dependant)
Dimensions	1"W x 1.9"H x L (1.4lbs/ft) EL = Effective Length 3" to 144" in 3" increments
Material Housing	Glass filled polyester (rugged, impact resistant, light grey color)
High Voltage Cable	Flexible, abrasion-resistant, silicone outer jacket rated to ±50 kV, 10-ft standard length (1/2" min bend radius)
Approval	RoHS

Pinner Charging Applicators
Profile	Pinner 5-Point: 7 in x 3/4 in diameter Linear Pinner: 4.75 in x 3/4 in diameter Pinner Claw: 8.5 in x 0.75 in Multi Point: 3.5 in x 1.125 in diameter
Points	Pinner 5-Point: 5 fixed Linear Pinner: 4 replaceable Pinner Claw: 3 replaceable Multi Point: 6 fixed
Temp. Rating	Pinner 5-Point: 500°F /260°C Linear Pinner: 221°F /105°C Pinner Claw: 500°F/260°C Multi Point: 221°F/105°C
Power Supply	Pinner 5-Point: 30 kV/50 kV Linear Pinner: 30 kV/50 kV Pinner Claw: 30 kV/50 kV Multi Point: 30 kV
Cable	Pinner 5-Point: 10 ft, not removable Linear Pinner: 10 ft, not removable Pinner Claw: 10 ft, not removable Multi Point: 10 ft, not removable
Resistor Limited	Pinner 5-Point: Yes Linear Pinner: Yes Pinner Claw: Yes Multi Point: Yes
