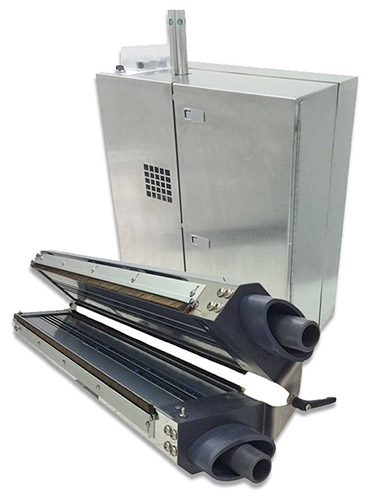

V-Force Self Contained Vacuum

V-Force Self Contained Vacuum

V-Force Self Contained Vacuum

V-Force 30 narrow web vacuum system is a unique high performing industrial vacuum cleaning system for narrow web machines. The V-Force 30 combines the power of static neutralization with high vacuum, high volume and high velocity allowing for ultimate cleaning.

It can be easily installed onto any area of open web on most major narrow web presses and other narrow web machinery making it ideal for any application.

The V-Force 30's low-profile hood integrates four barrier brushes to manage air velocity and air flow. It also incorporates shockless static bars, two upper and two lower, to quickly neutralize and break the bond between charged particulate and the running web up to 2,000 ft per minute. This optimizes the cleaning performance and neutralizes the web surface. The hood is available for 6, 12, 18, 24 and 30 inch web widths.

The Air Control System (ACS) is an all-in-one clean air blow-off / vacuum and collector support cabinet that drives our cleaning hood. This industrial powerhouse provides optimal filtration and airflow. The ACS’s stainless steel enclosure incorporates enhanced acoustic isolation for blowers and vacuum chambers making the system quieter than a Shop Vac!


  • Suitable for thin film applications
  • Coaxial hose design minimizes connections
  • Quiet operation (<70 dB)
  • Minimal floor space
  • Simple installation
  • Rugged stainless steel construction
  • Removable particle collection trays
  • Easy replaceable filters
  • Non-regenerative blower design



Max Web Speed 2,000 ft/min, 610 m/min
Max Web Width 30", 762 mm
Min Web Thickness 1 ml
Duct Connections 3" coaxial vacuum/blow off
Static Control Active 110/240 VAC, 50/60 Hz
Mounting four 1/4 -20 thread
Standard Opening manual with end hinges
Turbines 6 motors - 80" h20 lift
Hood Widths 6,12,18,24,30 inches

Air Control System (ACS)

Max Amperage 230 V, 3-phase at 20A
Decibel Rating <70 dB at full operating speed
Remote Access Remote on/off from PLC
Blow Off Dedicated Blow off turbine with 2 micron filtration
Hose Diameter 3" outer, 1.25" inner
Dimensions 32"L x 22"W x 49"H
Turbines 6 motors - 80" H20 lift
Vacuum and Blow Off Force 400 cfm vac; 200 cfm blow-off
